REX 50

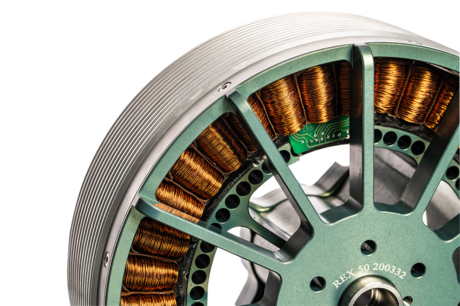

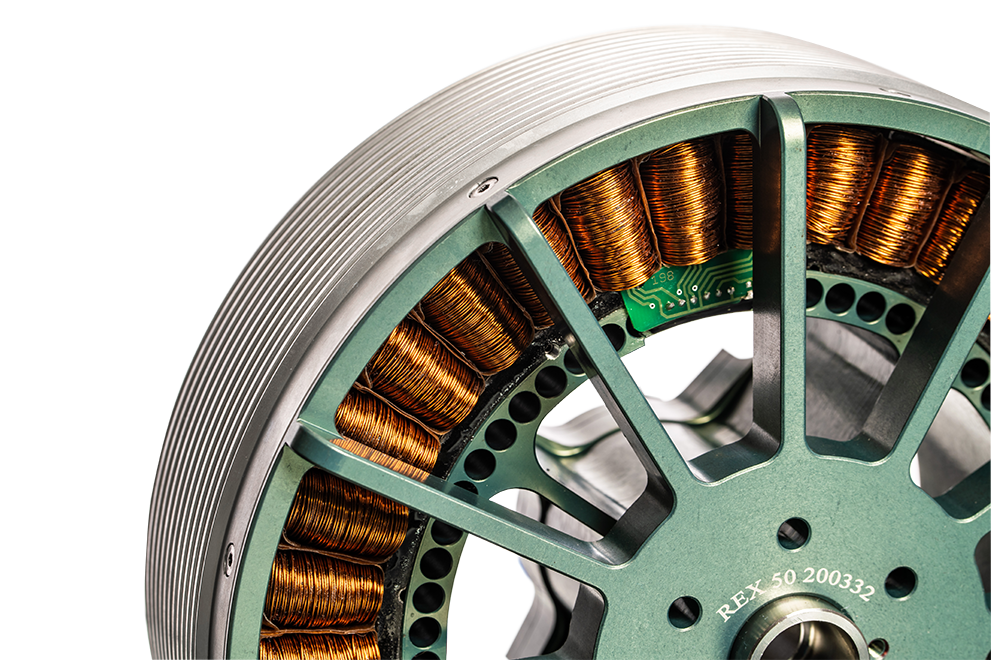

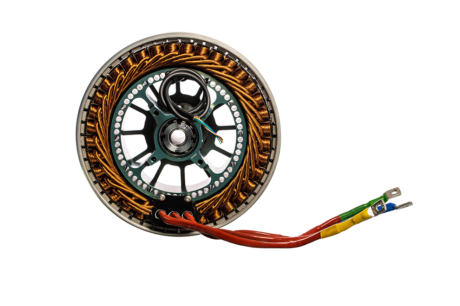

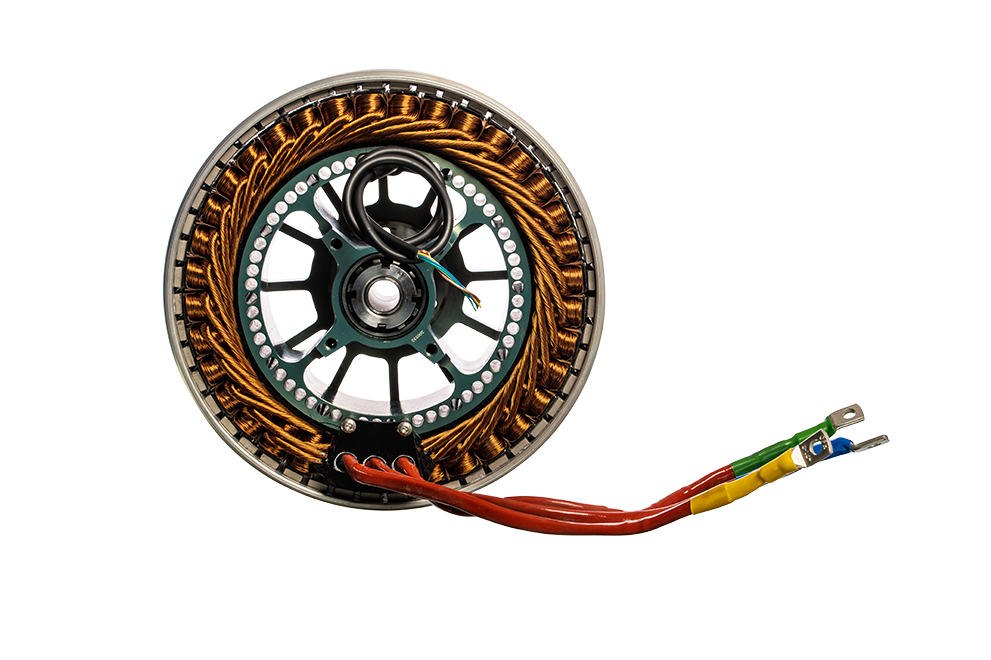

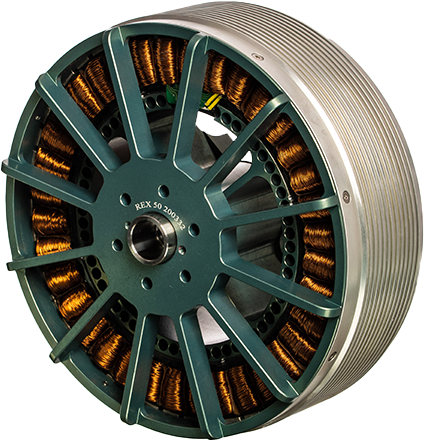

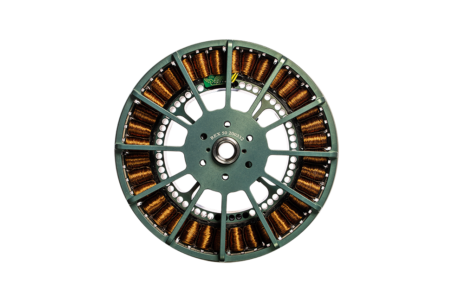

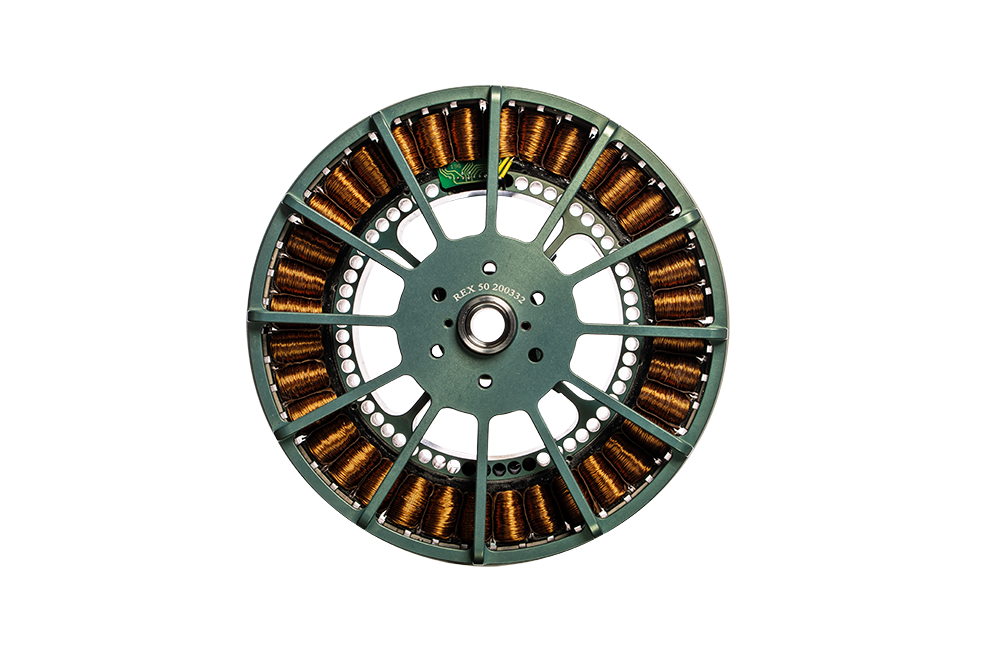

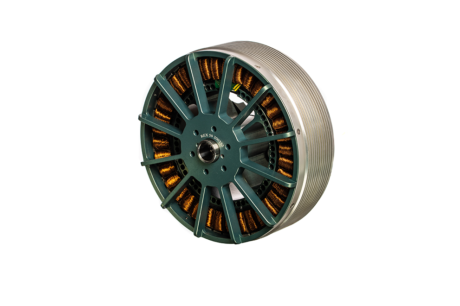

REX 50 ELECTRIC MOTOR

REX 50 is a universal choice for many small-dimension and light-weight aviation, marine, ground vehicle and other projects.

This 35 kw electric motor can be tailored exactly according to your specific needs, mainly if it comes to setting the right RPMs per Volt (KV).

Max. power

35 kW

Max. continuous power

20 - 25 kW

Torque

120 Nm

Voltage

63-800 V

RPM

1500-6000

Diameter

216 mm

Motor sensors

sensored or sensorless

Cooling

air/hybrid (fluid/air)

ask for quote

Features

Proven & high quality materials

Compact and durable design

Universal usage Air, ground and water projects.

Temperature monitoring

Sensor for absolute position

Variable winding

Technical data

Highly variable and customizable category of electric motors. This 35 kw electric motor is suitable for a wide range of aviation projects, such as drones, gliders, as well as various marine applications.

If you didn’t find what you had been looking for have a look into our other products. To see REX 50 in action, check out the SW HiTech company.

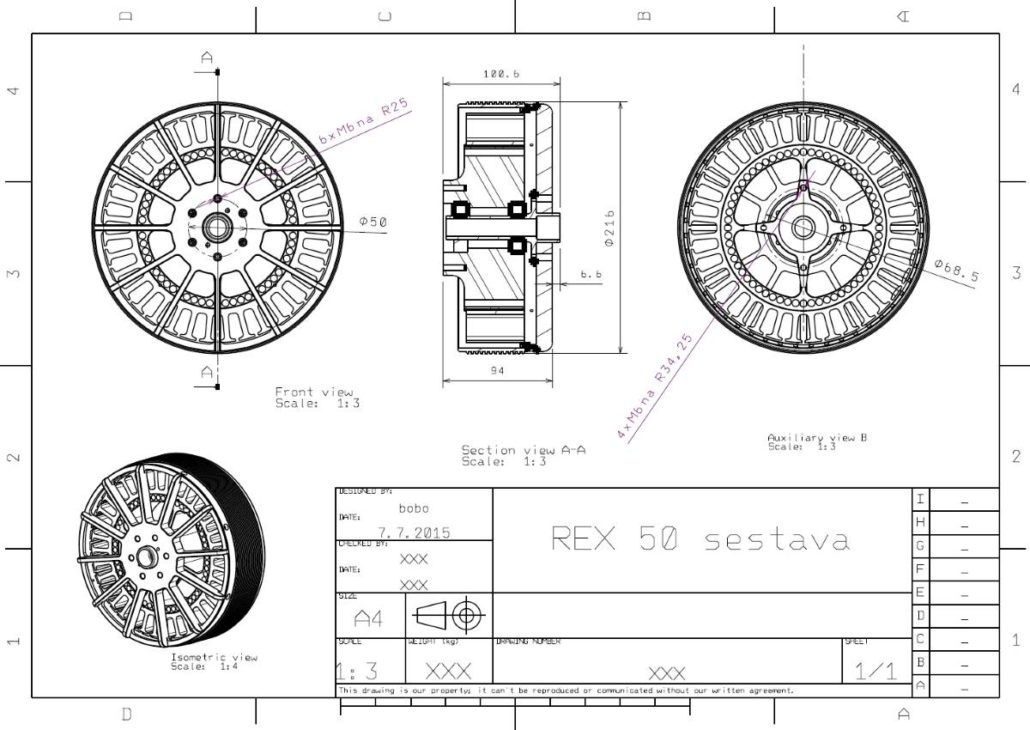

Dimensions
