RET 30

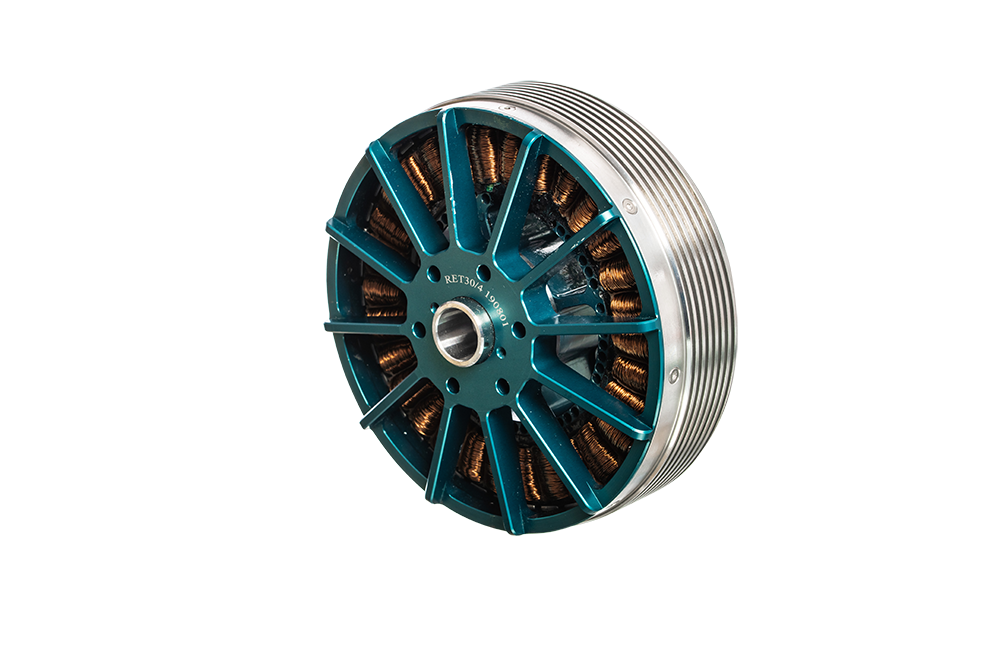

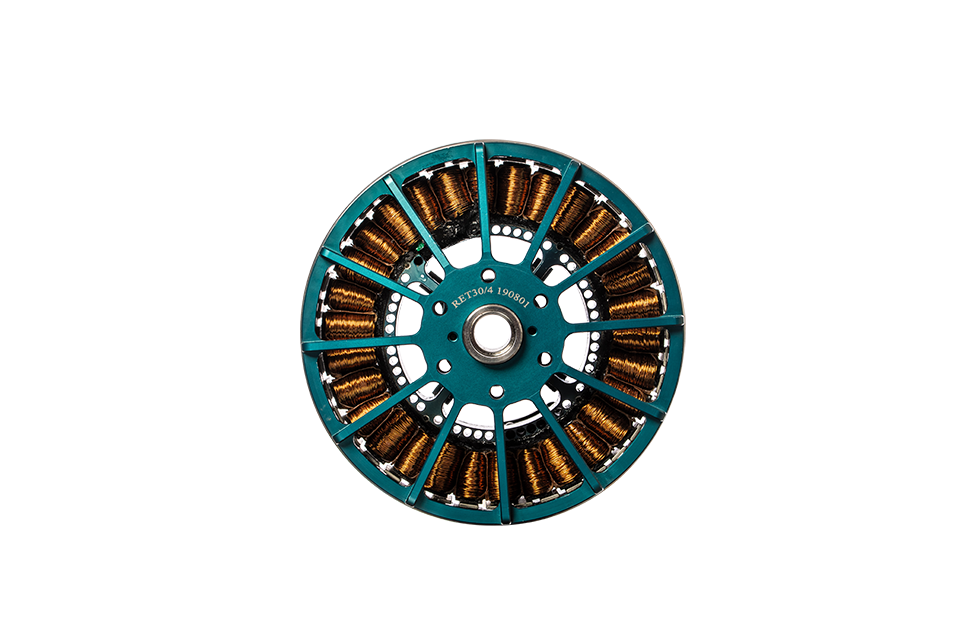

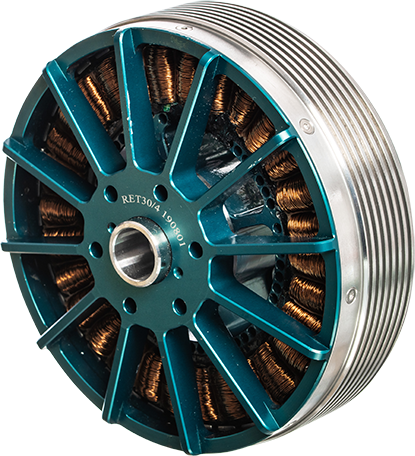

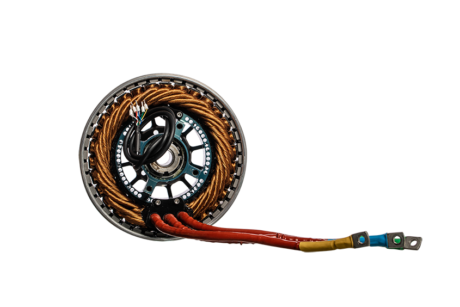

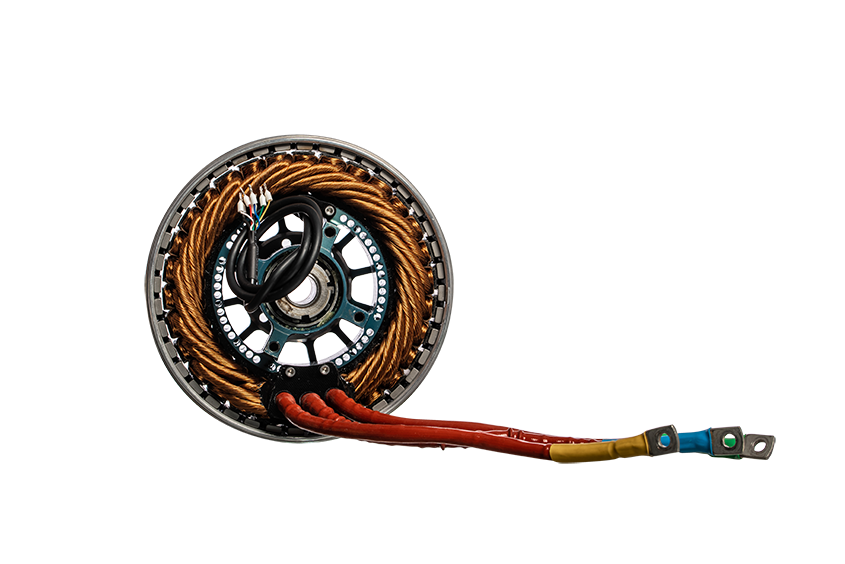

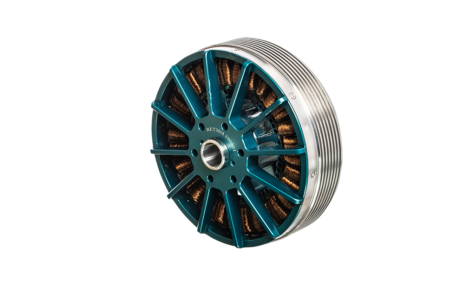

RET 30 ELECTRIC MOTOR

RET 30 is suitable for very ambitious projects, mainly drones and multirotor applications. This 15 kw electric motor provides a great performance also in ultralight gliders, where low weight combined with high performance is one of the most important aspects.

RET 30 is suitable for many types of electric bikes, as well as marine applications such as small electric boats.

Max. power

15 kW

Max. continuous power

8 - 12 kW

Torque

35 Nm

Voltage

63-400 V

RPM

8000

Diameter

169 mm

Motor sensors

sensored or sensorless

Cooling

air

ask for quote

Features

Proven & high quality materials

Compact and durable design

Universal usage Air, ground and water projects.

Temperature monitoring

Sensor for absolute position

Variable winding

Technical data

The most compact and light-weight category of motors in our portfolio. Their small dimensions combined with a low weight are ideal for aviation, marine, ground vehicle and other industrial projects. This 15 kw electric motor can work with high rotation speeds achieving up to 12 000 RPM.

If you didn’t find what you had been looking for have a look into our other products. We supplied our RET 30 motor to Ruppert Composite company to be used in their gliders.

Dimensions
