RET 20

RET 20 ELECTRIC MOTOR

Low weight of RET 20 brings major advantage for projects, where weight is crucial – this comes especially handy in many types of multirotor applications. This 13 kw electric motor also performs well in electric motorcycles, as well as marine projects such as smaller boats. Its specific construction allows a great installation variability: it suits well with both integral and outboard solutions.

We pay extra attention to customisation of our motors according to your requirements. We will do our best to tailor RET 20 exactly in the way you need.

Max. power

13 kW

Max. continuous power

7 - 10 kW

Torque

35 Nm

Voltage

63-400 V

RPM

2000 - 8000

Diameter

169 mm

Motor sensors

sensored or sensorless

Cooling

air

ask for quote

Features

Proven & high quality materials

Compact and durable design

Universal usage Air, ground and water projects.

Temperature monitoring

Sensor for absolute position

Variable winding

Technical data

The most compact and light-weight category of motors in our portfolio. Their small dimensions combined with a low weight are ideal for aviation, marine, ground vehicle and other industrial projects. This 13 kw electric motor can work with high rotation speeds achieving up to 12 000 RPM.

If you didn’t find what you had been looking for have a look into our other products. To see RET 20 in action, check out the Dufour Aerospace company and their aerial projects.

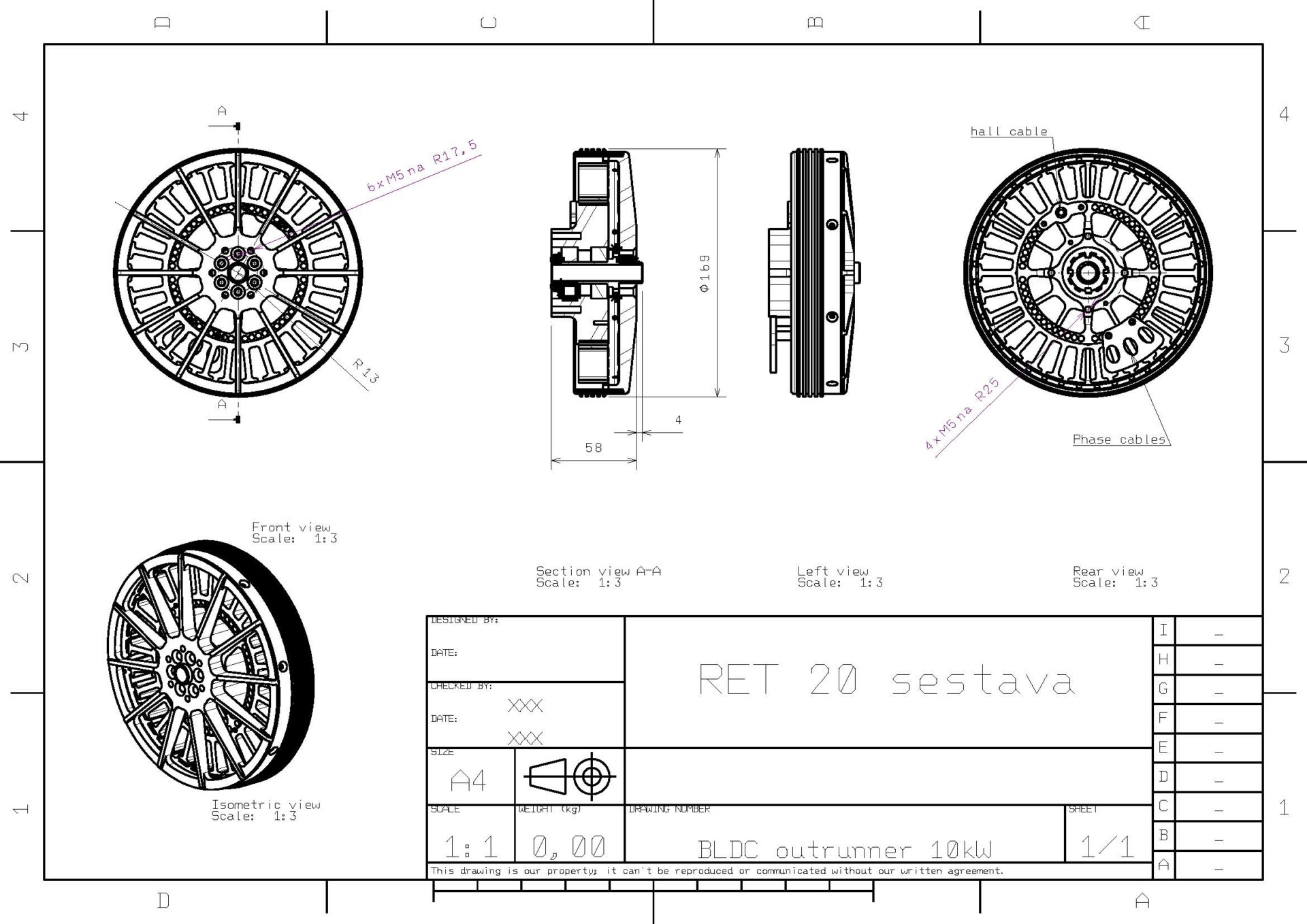

Dimensions
