REG 60

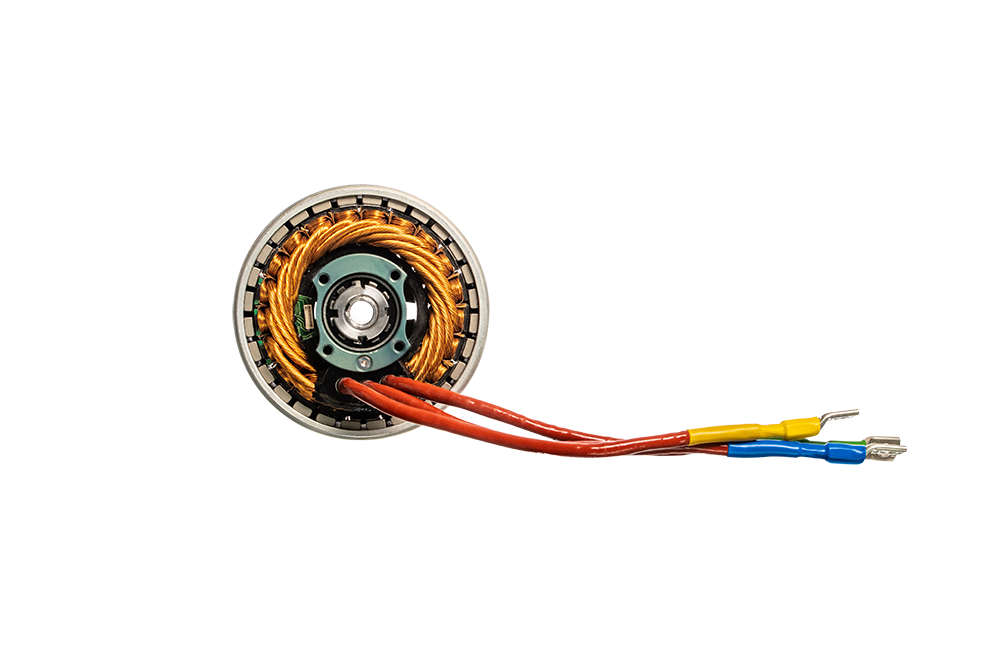

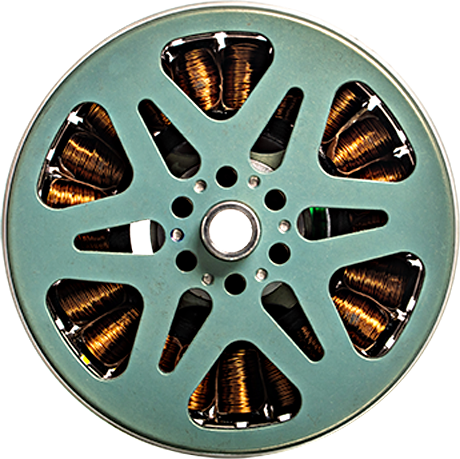

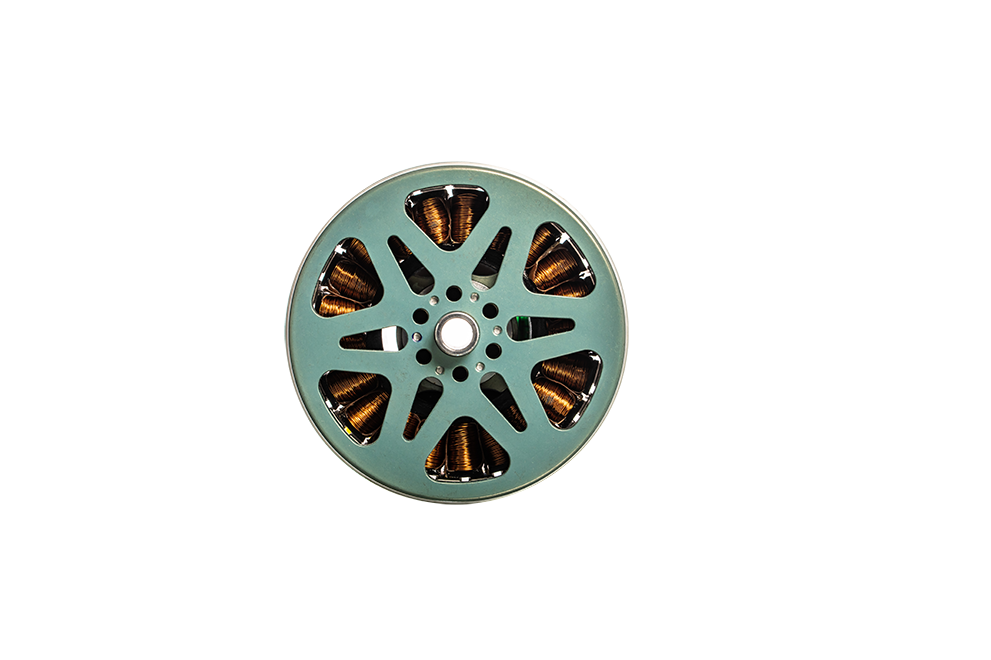

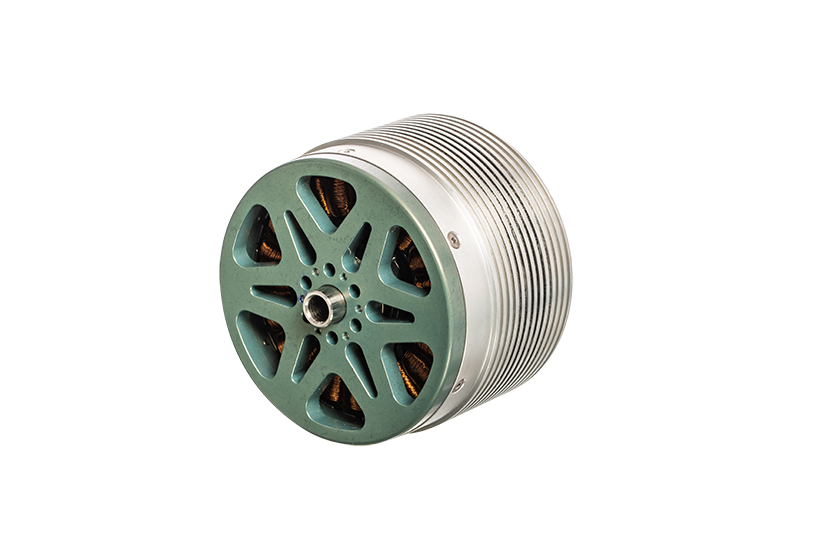

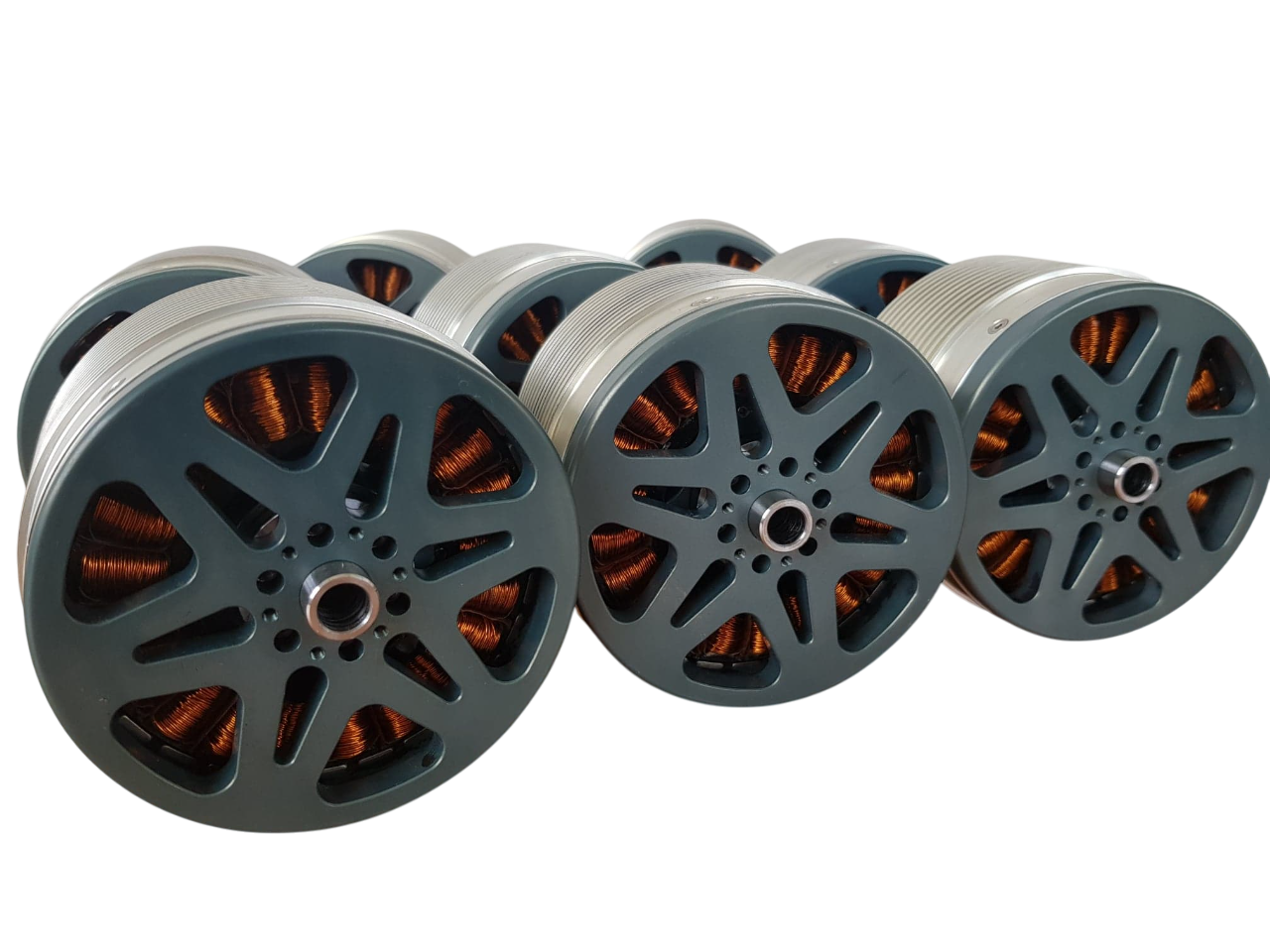

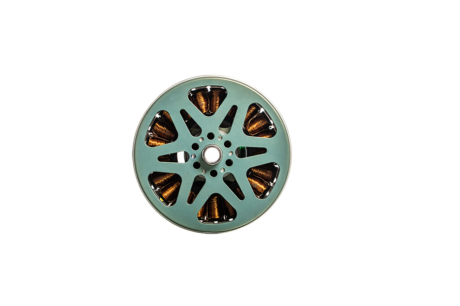

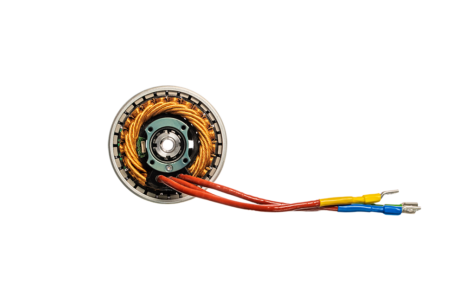

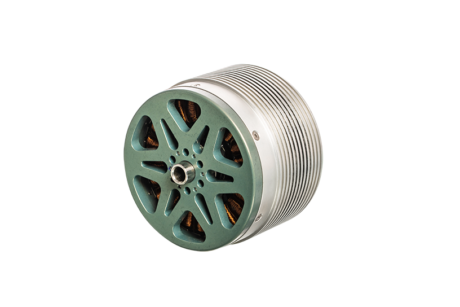

REG 60 ELECTRIC MOTOR

REG 60 is a universal choice for many small-dimension and light-weight aviation, marine, ground vehicle and other projects.

This 15 kw electric motor can be tailored exactly according to your specific needs, mainly if it comes to setting the right RPMs per Volt (KV).

Max. power

15 kW

Max. continuous power

8 - 12 kW

Torque

35 Nm

Voltage

63-400 V

RPM

8000

Diameter

114 mm

Motor sensors

sensored or sensorless

Cooling

air

ask for quote

Features

Proven & high quality materials

Compact and durable design

Universal usage Air, ground and water projects.

Temperature monitoring

Sensor for absolute position

Variable winding

Technical data

The most compact and light-weight category of motors in our portfolio. Their small dimensions combined with a low weight are ideal for aviation, marine, ground vehicle and other industrial projects. This 15 kw electric motor can work with high rotation speeds achieving up to 12 000 RPM.

If you didn’t find what you had been looking for have a look into our other products. To see REG 60 in action, you can check out the OSSA Motor company projects, where it was used.

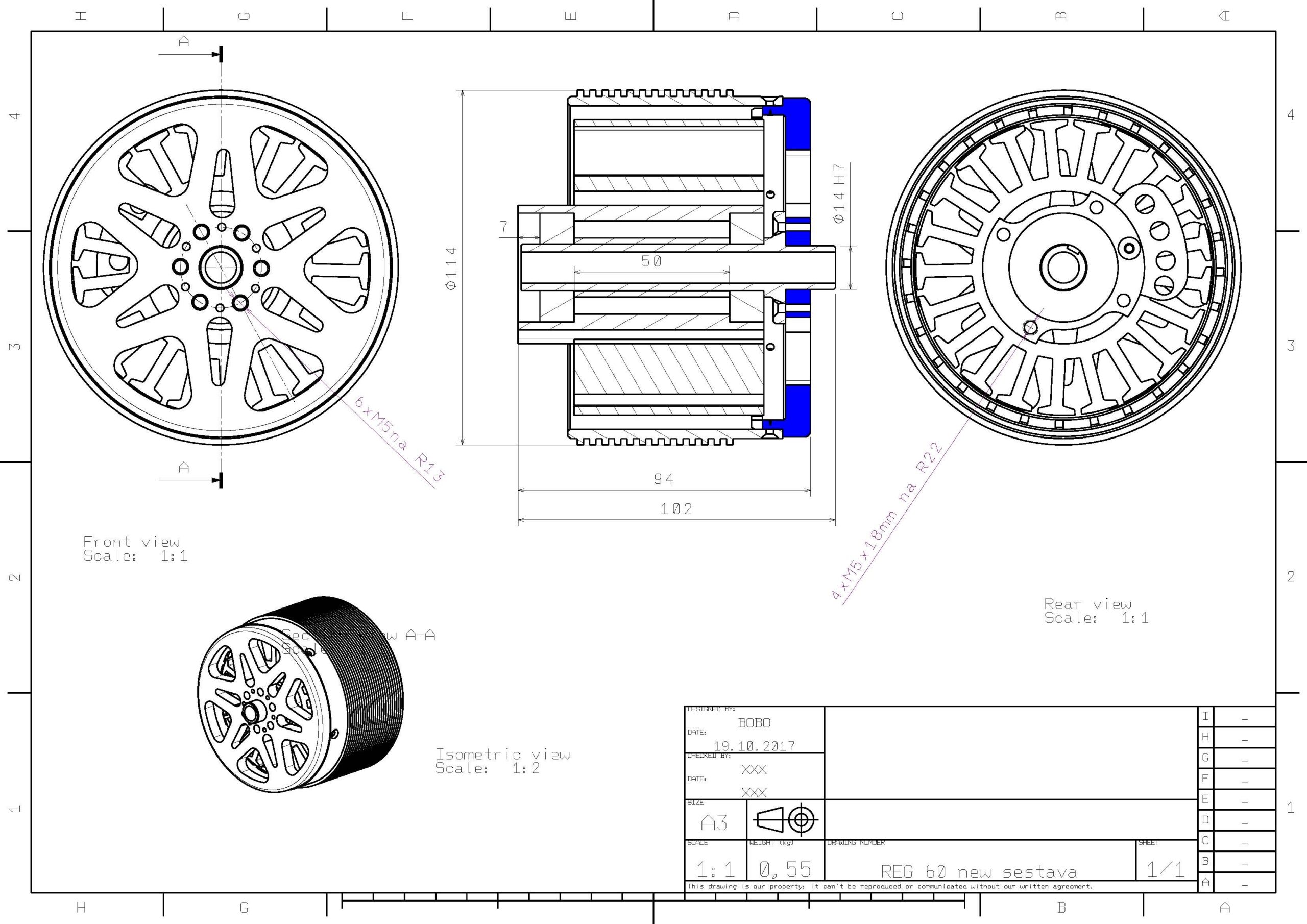

Dimensions
