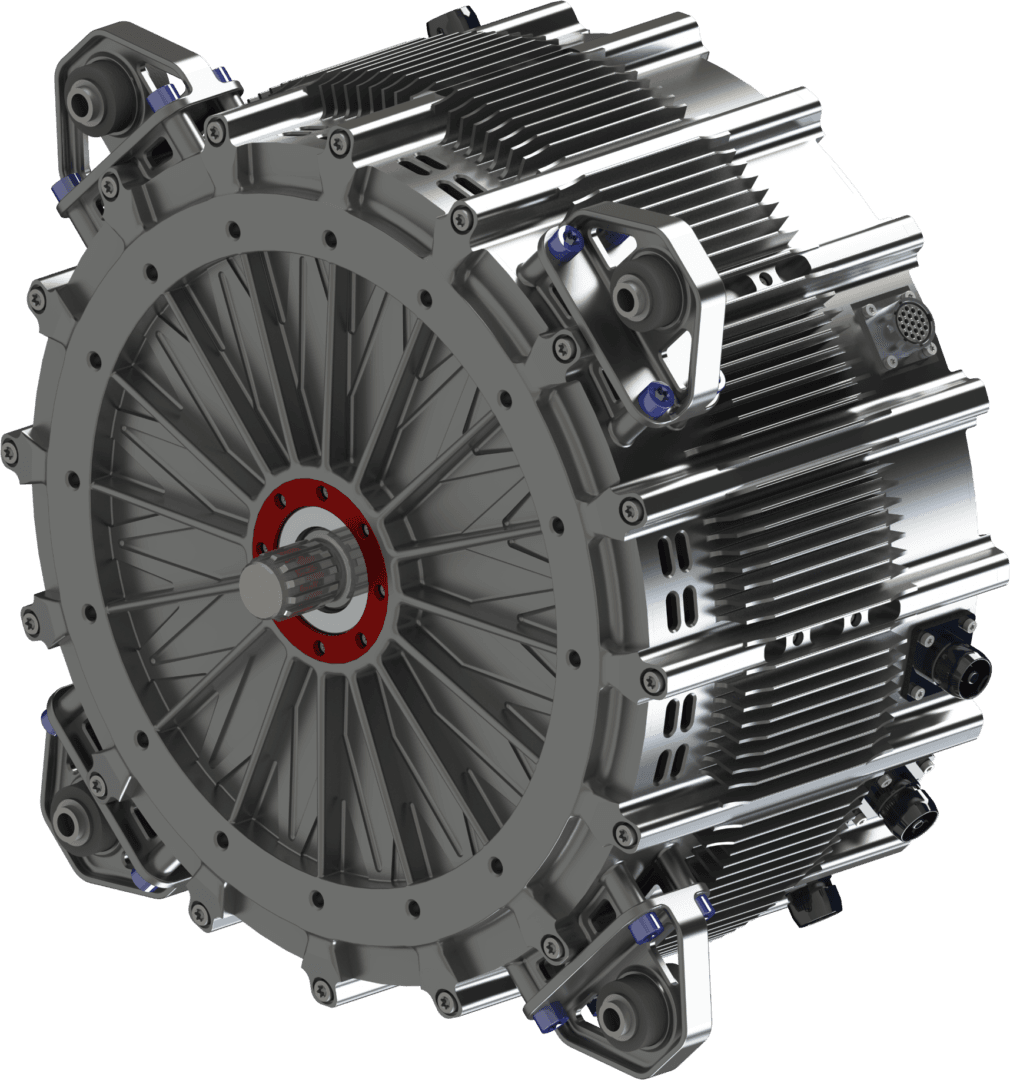

MGM BLDCin 200kW | MGM COMPRO

The all new generation of MGM COMPRO electric motors (BLDC / PMSM) brings enhanced potential to electric applications. Based on the innovative topology of the motor magnetic field and winding design, we have achieved higher power density than ever before.

The structural mechanical solution includes only high-quality selected materials, together with optimised geometric aspects, providing perfect efficiency, reliability and sustainability of the motors. This progressive approach enables the use of electric drives for an even wider range of aviation applications.

Single-core topology
Primary and secondary liquid cooling system based on dielectric coolant
Sensored operating mode – commutation output U,V,W
Zero cooging from initial angular speed
Thermal behavior control state on deployed temperature sensors
Unique design of the rotor core cooling system

Peak power

200 kW

Continuous power

150 kW

Peak torque

370 Nm

Continuous torque

240 Nm

Voltage

800 V

Limiting speed

6500 RPM

Diameter

283,2 mm

Cooling

air/hybrid (fluid/air)

ask for quote

Features

Proven & high quality materials

Compact and durable design

Universal usage Air, ground and water projects.

Temperature monitoring

Sensor for absolute position

Variable winding

Technical data

DATA	VALUE	UNIT
KV constant (no-load)	13,4	RPM/VDC
Motor peak efficiency	up to 96	%
Peak torque	370	Nm
Peak power	200	kW
Continuous power	150	kW
Phase current MAX	550	A
Torque constant KT	0.7166	Nm/ARMS
Internal phase resistance	7,1714	mOhm
Phase inductance	22,5	µH
Number of poles	30	pcs.
Winding configuration	STAR
Motor outer diameter	283,2	mm
Motor length	110,5	mm
Rotor inertia	0,14	kgm²
Limiting speed	6500	RPM
Sensored operation mode	U,V,W
Absolute position	N/A	Optional
Temperature sensor	PT 1 000
Maximal operation temperature	150	°C
Maximal voltage	800	V
Cable cross-section recommendation	min 16	mm²
Maximal mechanical radial load	TBD	Nm
Maximal mechanical axial load	TBD	N
Bearing configuration	not specify
Weight (excl. encoder)	53,5	kg
