This class offers an excellent and unbeatable ratio of dimensions to weight while achieving high performance. All MGM COMPRO controllers come standard with a wide number of features, options for setup, diagnostics and connectivity.
PC communication (including Real-time monitoring) as well as data logging for nearly unlimited amount of time represent unrivalled tools for optimizing the propulsion setup and data evaluation. Active safety components, expanded to include the Emergency Stop Function, make operation even safer.
The hardware and software can be configured by the user, which is a major advantage. This also means product adaptability to specific customer needs is enormous.
They are produced in a number of different configurations and with various options, including air and/or fluid cooling.
Applications range from the EVs such as eVTOLs, UAVs, electric aircraft, military and marine vehicles, motorbikes, etc. to various other applications requiring high performance with minimal dimensions and weight along with high reliability and quality with exceptional drive unit management.
Note: all the values are valid for environments of 25°C (please see the manual)
Valid for 25°C environment temperature.
Temperature of the environment: | -25°C to +60°C, see Power derating curve |
Humidity: | 0 ÷ 90% RH, non-condensing |
Number of regulation steps: | 2048 / full throttle range |
Max. rpm for 2 poles motors: | 200 000 rpm |
Motor PWM: | 8 up to 32 kHz |
Control signal: | PWM / voltages / potentiometers / logic signal / data transfer (CAN, RS485, etc.), see “HBCi Global manual” for details |
Traction Feeding: | Li-Ion, Li-Pol, LiFePo4, A123, NiMH, NiCd, acid (Pb) or any others cells, power supplies |
Weight is defined for basic modification with screwed type connectors.

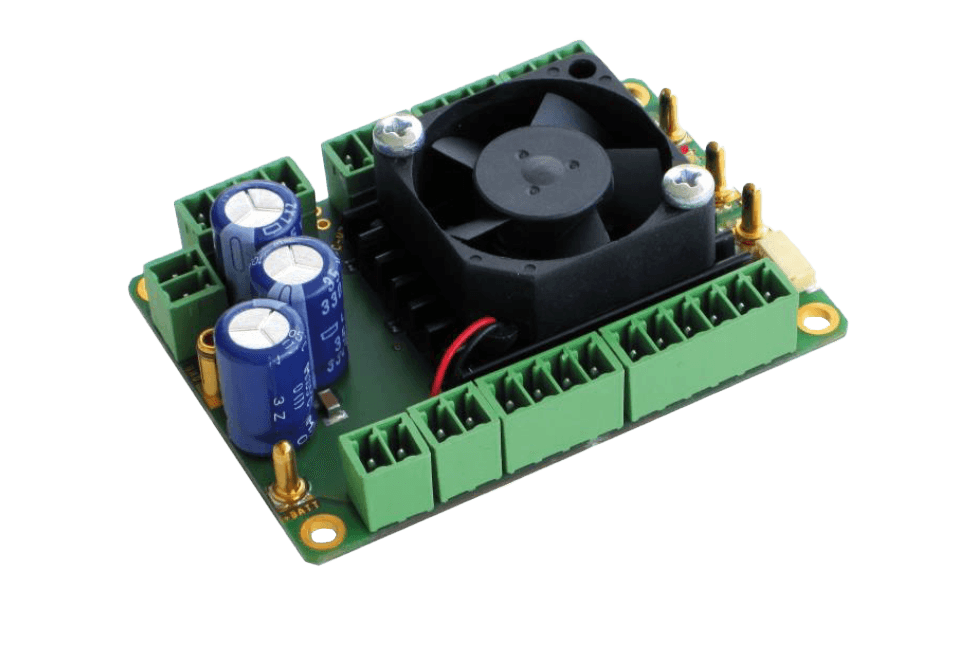

HSBC-series TMM® xxxxx-3 V 7.xx | 5035-3 | 4063-3 | 5063-3W (with water cooling) |
---|---|---|---|
Maximal continuous power: | 1,4 kW | 2,5 kW | 3,1 kW |
Feeding voltage: | 10 – 35 V | 10 – 63 V | 10 – 63 V |
No. of feeding cells NiCd / NiMH: | 12 – 24 | 12 – 44 | 12 – 44 |
No. of feeding cells Li-Ion / Li-Po: | 3 – 8 | 3 – 15 | 3 – 15 |
No. of feeding cells A123: | 4 – 9 | 4 – 17 | 4 – 17 |
Max. continuous (nominal) current *): | 50 A | 40 A | 50 A |
Max. short time current : **) | 70 A | 56 A | 70 A |
On-state FETs resistance for 25 °C (typ.): | 2×0,56 mΩ | 2×1,56 mΩ | 2×1,56 mΩ |

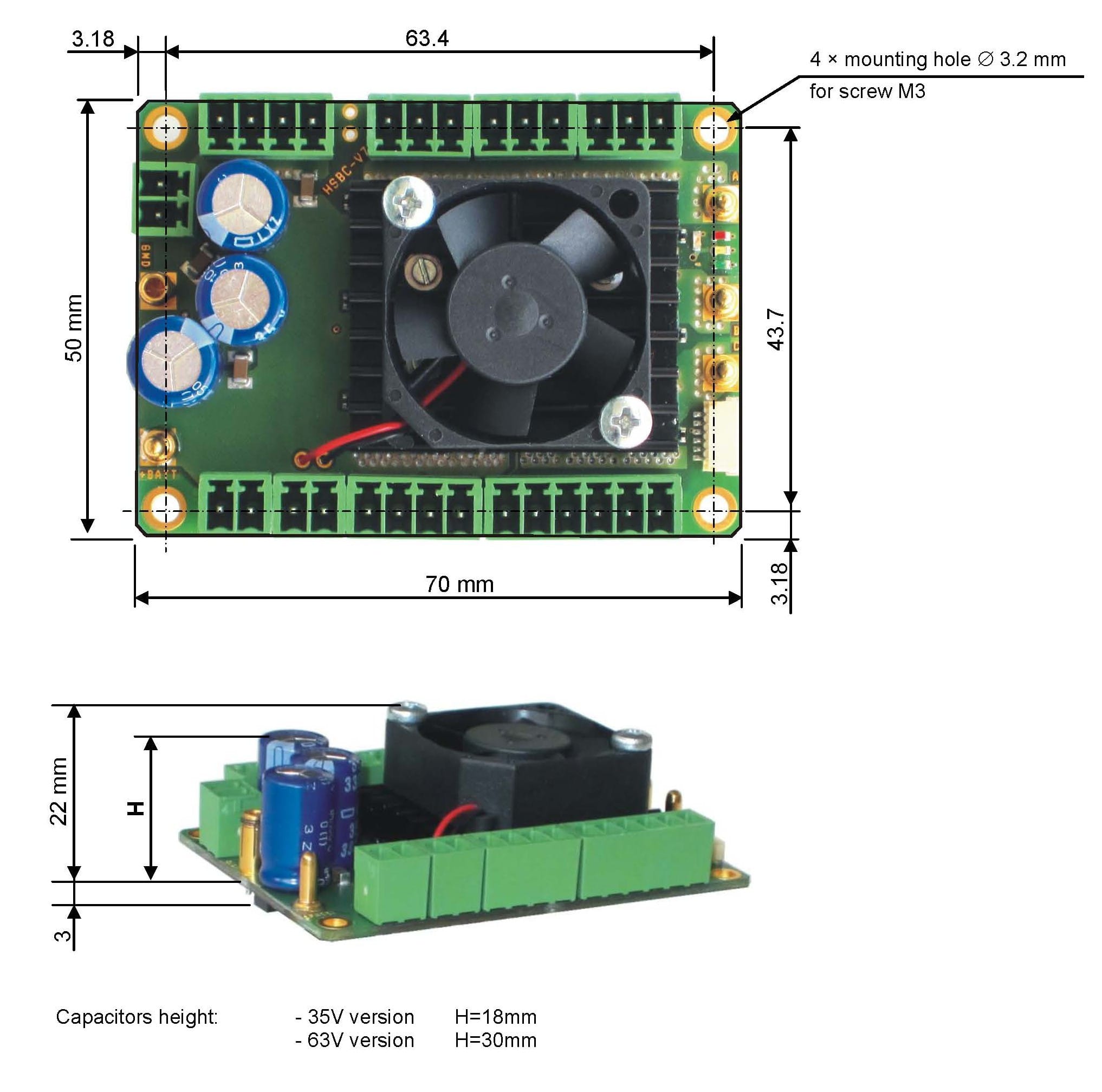

Basic dimensions [mm]: | see pictures | see pictures | see pictures |
Weight without fan: | ~ 60 gr. | ~ 60 gr. | ~ 60 gr. |
Weight with fan: | ~ 70 gr. | ~ 70 gr. | ~ 70 gr. |
*) for 100% motor PWM, 8 kHz motor PWM, ≤ 70.000 rpm (for 2 poles motor), 25°C environment temperature.
Phase currents ≤ (NBC × 1.3)
(for higher PWM frequency see bellow „PWM frequency Derating curve“)
**) Low profile weight (25 mm height cooler + 15 mm fan) / high profile weight (40 mm height cooler + 25mm fan).
Note: water flow >3 liters / minute & input water temperature ≤ 30°C for water cooling version
