BMS | Battery Management Systems

MGM COMPRO’s modular Battery Management Systems (BMS) bring a new dimension to technic and economic effectiveness of applications using LiPol, Li-Ion and LiFePO4 cells, achieving the best possible energy density of ESS. Our wide range of BMS products ensure exceptional management throughout the entire SOC of energy storage systems. Thanks to the low power consumption (or even zero consumption), they have high application potential in industrial applications such as aviation, defence, marine technology and others EV sectors, or products that require high-tech processes and safety controls.

As safety always takes first place with our products, the BMS’s hardware structure includes doubled critical components to ensure robustness and safety, even for the most critical applications with specific environmental conditions. In line with the industrial standard, our BMS communicates with the master system via a CAN bus, for usage ESS topologies with multiple BMS modules communicate via RS-485 connection. The full BMS product line offers an automatic self-testing process which controls and analyses the general functionality before and during operation to ensure system stability and reliability.

Products

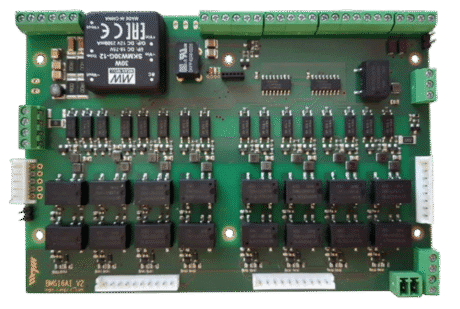

BMS-16Ai

(224 cells | Active | 800 V | 130 g)

BMS based on ACTIVE cell balancing, designed for use with Li-Pol, Li-Ion, LiFePO4 cells or any other cell type. The topology of MODULES can be set up to (1× Master / 13× Slaves), controls up to 224 serial connected cells with max. battery voltage (ESS) up to 800 V.

more info

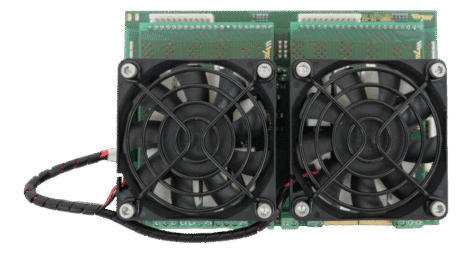

BMS-16i

(128 cells | Passive | 540 V | 305 g)

BMS based on PASSIVE cell balancing, designed for use with Li-Pol, Li-Ion, LiFePO4 cells or any other cell type. The topology of MODULES can be set up to (1× Master / 7× Slaves), controls up to 128 serial connected cells with max. battery voltage (ESS) up to 540 V.

more info

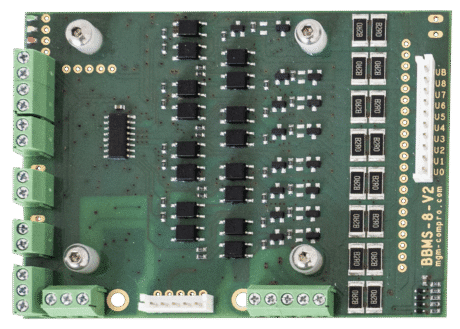

BMS-8i

(64 cells | Passive | 270 V | 150 g)

BMS based on PASSIVE cell balancing, designed for use with Li-Pol, Li-Ion, LiFePO4 cells or any other cell type. The topology of MODULES can be set up to (1× Master / 7× Slaves), controls up to 64 serial connected cells with max. battery voltage (ESS) up to 270 V.

more info

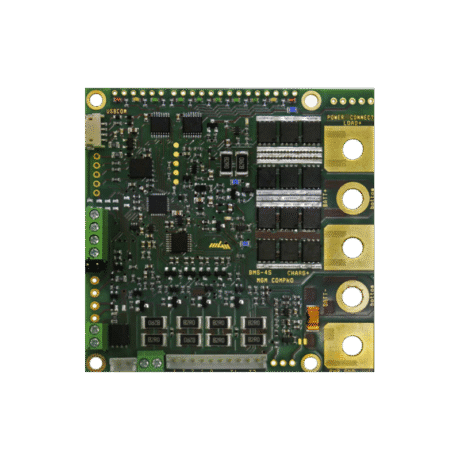

BMS-4i

(16 cells | Passive | 70,4 V | 32 g)

BMS based on PASSIVE cell balancing, designed for use with Li-Pol, Li-Ion, LiFePO4 cells or any other cell type. The topology of MODULES can be set up to (1× Master / 3× Slaves), controls up to 16 serial connected cells with max. battery voltage (ESS) up to 70,4 V.

more info

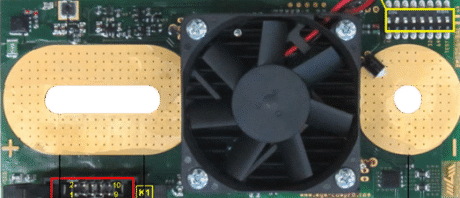

BMS-2 BAL V250

(250 cells | Passive | 1050 V | 32 g)

BMS based on PASSIVE cell balancing with high currents up to 10A / cell, designed for use with LiFePO4 cells. The topology of MODULES can be set up to 250 balancers with max. battery voltage (ESS) up to 1050 V.

more info
